Mini Precision Medium Voltage Instrument Transformers Epoxy Resin Type

Name: Mini Precision Medium Voltage Instrument Transformers Epoxy Resin Type
Brand: CY-Group
Price: 1 USD

Wholesale Mini Precision Medium Voltage Instrument Transformers Epoxy Resin Type from china suppliers

Brand Name : CY-Group

Model Number : JDZX12-24R

Certification : KEMA CE ISO SGS TUV UC3

Place of Origin : China

MOQ : 1pcs

Price : NEGOTIABLE

Payment Terms : L/C, TT,D/A,D/P

Supply Ability : 3600000pcs/year

Delivery Time : 3-8 days

Packaging Details : Plymood

Material : Epoxy Resin

Voltage : 15/24KV

Rated Frequency : 50/60Hz

Installation site : Indoor

Rated primary voltage (kV) : 15 20 22

Rated secondary voltage : 0.1/√3/0.1/3 0.11/√3/0.11/3

Standard : IEC 61869-1:2007, IEC 61869-3:2011

Burden power factor : cos￠=0.8(lagging)

Rated insulation level(kV) : 17.5/38/95 24/50/125 24/65/125

Accuracy : 0.2 0.5/3P

Contact Now

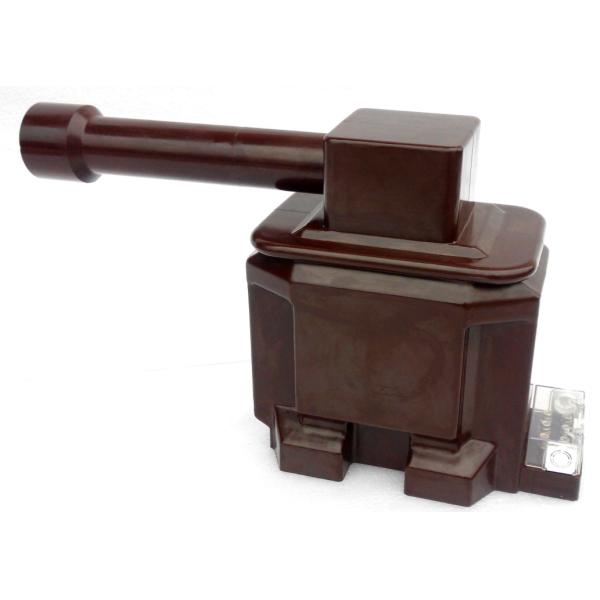

MV Voltage Transformer JDZX12-24R VOLTAGE TRANSFORMER 24kV Indoor Single-Phase Epoxy Resin Type Mini Precision for AIS GIS switchgear

JDZX12-24R voltage transformer , epoxy resin casting and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5 kV (Up to 24kV).

The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs..

Mini Precision Medium Voltage Instrument Transformers Epoxy Resin Type

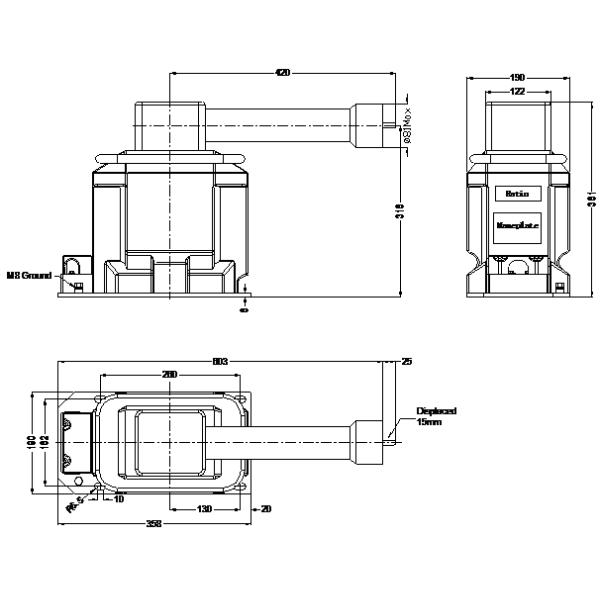

Outline drawing

Mini Precision Medium Voltage Instrument Transformers Epoxy Resin Type
