12/24/36kV Medium Voltage Transformer Bushing Metallic Coating Touch Proof MV/LV/HV Epoxy Resin Casting Single Phase

Brand Name : Chuangyin

Model Number : JDZX13-12/24/36PC

Certification : Kema,CE,SGS,TUV

Place of Origin : ShenZhen

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Delivery Time : Within 7 days

Packaging Details : Carton packing for one sets, one set including three piece with Components

Construction : Insulation Structure

Highest Voltage for Equipment : 36KV

Termal Limit Output : 150/300VA

Um : Up to 110KV

Installation Site : Indoor/Oudoor

Rated Insulation Level : 12/28/75KV;24/50/125KV;36/70/170KV

Type : Single-Phase

Standard : IEC/IEEE

Use : AIS/GIS Use

Contact Now

12/24/36kV Medium Voltage Transformer Bushing Metallic Coating Touch Proof MV/LV/HV Epoxy Resin Casting Single Phase​


1.Product Introduction:

Voltage transformer is fully enclosed cast insulation structure, the primary and secondary winding, the toroidal core are all encapsulated in the epoxy resin casting body to improve the
filterability and moisture resistance. The product plug part is designed to conform to the 2 # inner cone (EN 50181). The overall structure is designed to be fully shielded surface. It is used indoor for measuring voltage, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 36kV.

Technical Data

1. Installation site: Indoor
2. Rated frequency: 50/60Hz
3. Load power factor: coso=0.8 (lagging)
4. Technical standard accords with: IEC 60044-2

IEC 61869-183

Item Specification Unit Data
1 Um kV Up to 36
2 Rated Insulation Level kV Up to 36/70/170
3 Rated Primary Voltage V

33000/√3

22000/√3

11000/√3
4 Rated Secondary Voltage V 110/√3 or 110/3

Type

Rated primary

voltage (kV)

 Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

 Rated insulation level(kV)
JDZX13-12/24/36PC

33/√3

22/√3

11/√3

 0.11//√3 0.2 20 300

12/28/75

24/50/125

36/70/170
0.5 50
1 80
0.11/√3/0.11/3
 0.2/6P(3P) 150
25/50
0.5/6P(3P) 50/50

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

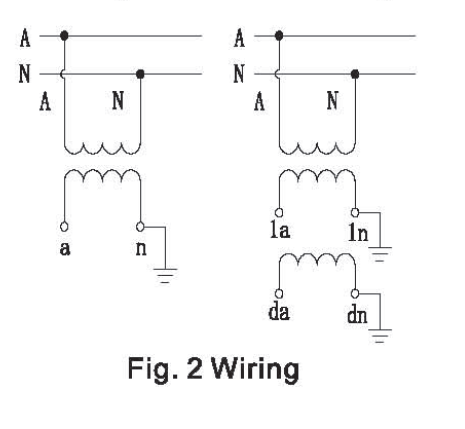

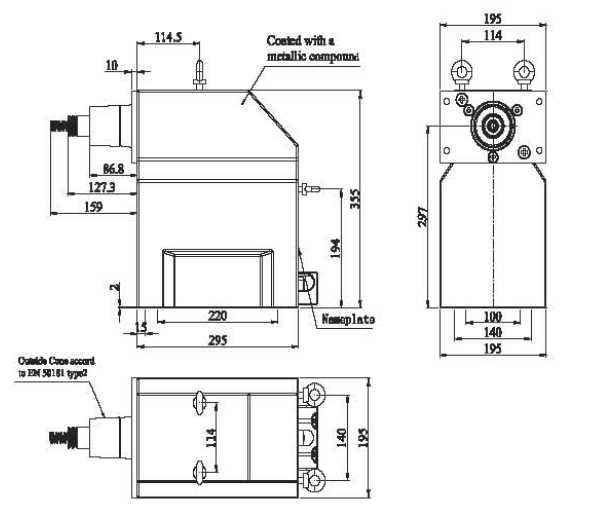

Outline drawing

12/24/36kV Medium Voltage Transformer Bushing Metallic Coating Touch Proof MV/LV/HV Epoxy Resin Casting Single Phase12/24/36kV Medium Voltage Transformer Bushing Metallic Coating Touch Proof MV/LV/HV Epoxy Resin Casting Single Phase

We are specializing in MV&LV Current Transformer Voltage Transformer, and Cable Accessories with great quality and competitive price. Really hope to be a business partner of your company.


Product Tags:

medium voltage potential transformer



single phase voltage transformer


Wholesale 12/24/36kV Medium Voltage Transformer Bushing Metallic Coating Touch Proof MV/LV/HV Epoxy Resin Casting Single Phase from china suppliers
