12kv Indoor Single- Phrase Epoxy Resion Casting Type

Name: 12kv Indoor Single Phrase Epoxy Resion Casting Type
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : JDZ18-12R

Certification : KEMA,SGS,TUV,UL,CE,TUV

Place of Origin : Shenzhen

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, D/A, D/P, MoneyGram

Supply Ability : 36,000,00pcs per year

Packaging Details : Plywood

Rated insulation level : 12kv

Installation site : Indoor

Material : Epoxy Resin

Standard : IEC 60044-2

Contact Now

12kv Indoor Single- Phrase Epoxy Resion

1.Product Introduction:

JDZ18-12R voltage transformer, epoxy resin casting and full enclosed construction, is used indoor for measuring current, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipement 12kV.

The product has the feature of high reliability, low magnetism of core, large creep distance of external insulation and maintenance free etc

2. Technical Data:

Main technical parameter
1. Installation site:Indoor
2. Rated frequency: 50/60hz
3. Load Power Factor: cosθ=038(Lagginig)
4. Standards: IEC60044-2(IEC61869-1&3)

1. Highest voltage for equipment: 12kV

2. Rated primary voltage: 11kV

3. Rated secondary voltage: 100/220V or 110/220V or 100V or 110V.

4. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers

3. Specification:

Type	Rated primary voltage (kV)	Rated secondary voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZ18-12R	11	0.1 0.11	0.2	30	500	12/28/75
			0.5	50
			1	80
		0.1/0.1 0.11/0.11	0.2/0.2	15/15	500
			0.2/0.5	15/25
		0.1/.022 0.11/0.22	0.2/6P(3P)	30/800	800
			0.5/6P(3P)	50/800

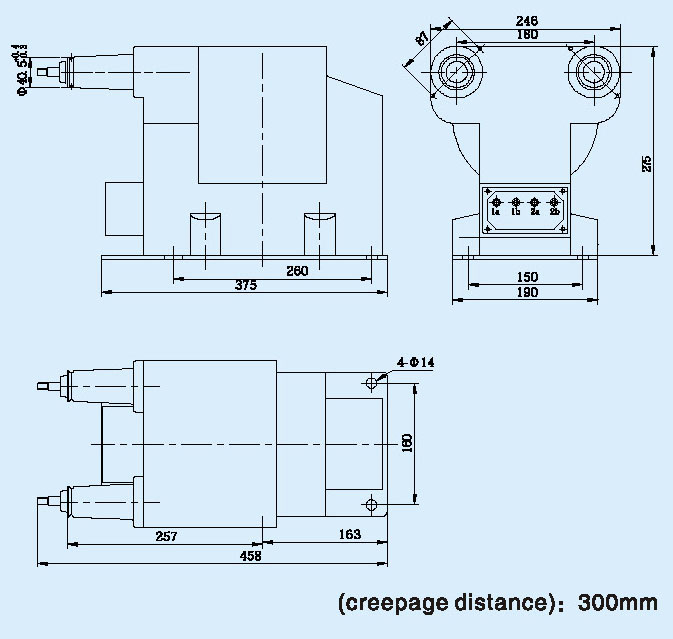

4. Outline Drawing:

12kv Indoor Single- Phrase Epoxy Resion Casting Type

5.Photos:
