JLSZXW3-17.5F 17.5kV Outdoor Three-Phase Epoxy Resin Type Combined MV Voltage Transformer

  • 1
  • 2
  • 3

Brand Name : Chuangyin

Model Number : JLSZXW3-17.5F

Certification : Test Report

Place of Origin : ShenZhen

MOQ : 1set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 36,000,000pcs per year

Packaging Details : Plywood

Type : Combined Transformer

Rated Primary Voltage : 10√3

Rated Frequency : 50/60HZ

Rated Voltage : 12/28/75KV; 17.5/38/95KV

Installation Site : Outdoor

Material : Epoxy Resin

Contact Now

JLSZXW3-17.5F 17.5kV Outdoor Three-Phase Epoxy Resin Type Combined MV Voltage Transformer

The transformer is made up of three single phase combined transformers.

It can be used outdoor, Its highest voltage for equipment can be 17.5kV.

Technical Data

1.Installation site Outdoor

2.Rated Frequency 50/60Hz

3.Burden power factor COSФ=0.8(lagging)

4.Technical standard IEC 60044-1&2, IEC 61869-1&2&3

Specification

Rated primary Voltage(kV)

Rated secondary

Voltage(kV)

 Accuracy classes Rated output(VA) Rated current ratio (A)

Accuracy class

Rated output

 Rated Insulation level (kV)

10/√3

11/√3

12.47/√3

13.8/√3

15/√3

100/√3

110/√3

120/√3

100

110

120

0.2

0.5

1

15

30

50

 5-10/5

0.2S

0.2

0.5S

0.5

1

10

12.5

15

12/28/75

17.5/38/95
10-20/5
15-30/5
up...to...
200-400
300-600
400-800
500-1000
600-1200

Note:Upon request we are glad to offer transformers according to other technical specs.

Outline drawing

JLSZXW3-17.5F 17.5kV Outdoor Three-Phase Epoxy Resin Type Combined MV Voltage Transformer

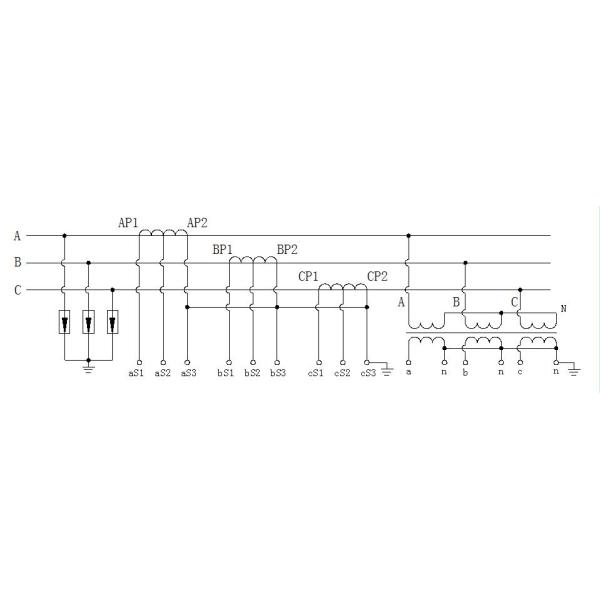

Wiring diagram

JLSZXW3-17.5F 17.5kV Outdoor Three-Phase Epoxy Resin Type Combined MV Voltage Transformer
